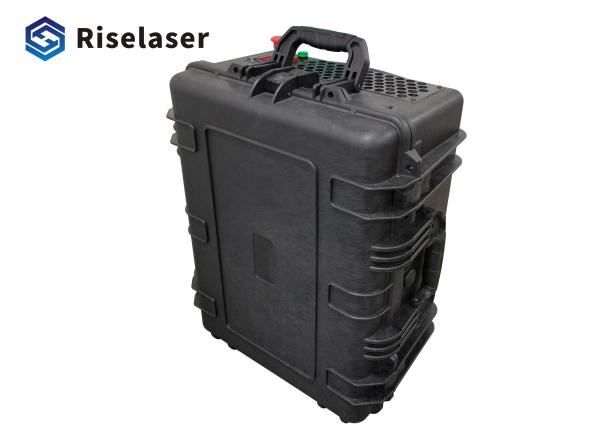

Handheld 100w Laser Rust Removal Machine With JPT Laser Source
Machine sepcification
| Laser power(w) | 100 |
| Output central wavelength(nm) | 1064 |
| Bean quality(m²) | <2 |
| power adjustment range(%) | 10-100 |
| Output power instability(%) | ≤5 |
| Pulse repetition rate(KHZ) | 1-4000 |
| Pulse length(ns) | 2-500 |
| Max pulse energy(MJ) | 1.5 |
| Beam diameter (mm) | 4.0±0.5 |
| cooling method Water cooling | Air cooling |
| Machine size(mm) | 617*469*291 |
Super laser cleaning head: adopted Germany Raylase laser head, one time press button to preview, twice to start cleaing.
45☆ This cleaning head weight is 620g only. Easy for operation.
Advantages of laser cleaning
Compared with traditional cleaning methods such as mechanical friction cleaning, chemical corrosion cleaning, liquid-solid strong impact cleaning, and high-frequency ultrasonic cleaning, laser cleaning has obvious advantages.
1. Environmental advantages: laser cleaning is a "green" cleaning method. It does not need to use any chemical reagents and cleaning fluids. The cleaned waste is basically solid powder. It is small in size and easy to store and recycle. It can easily solve the environmental pollution problem caused by chemical cleaning.
2. Effect advantage: The traditional cleaning method is mostly contact cleaning, which produces mechanical force on the surface of the object to be cleaned, damages the surface of the object or the cleaning medium adheres to the surface of the object to be cleaned, which cannot be removed and causes secondary pollution. The non-abrasive and non-contact laser cleaning can solve these problems; laser cleaning can remove all kinds of contaminants on the surface of various materials to achieve a cleanliness that cannot be achieved by conventional cleaning. It can also selectively clean contaminants on the surface of the material without damaging the surface of the material.
3. Control advantages: The laser can be transmitted through optical fiber, cooperate with manipulators and robots to facilitate long-distance operation, and can clean the parts that are not easily reachable by traditional methods to ensure the safety of workers. Some dangerous places.
4. Cost advantage: The laser cleaning efficiency is high and saves time; although the one-time investment of the laser cleaning system is relatively high in the early stage, the cleaning system can be used stably for a long time and the operating cost is low.
More importantly, it can be easily automated.
Handheld laser cleaning machine Cleaning Sample
MINI handheld laser cleaning machine 100w video
